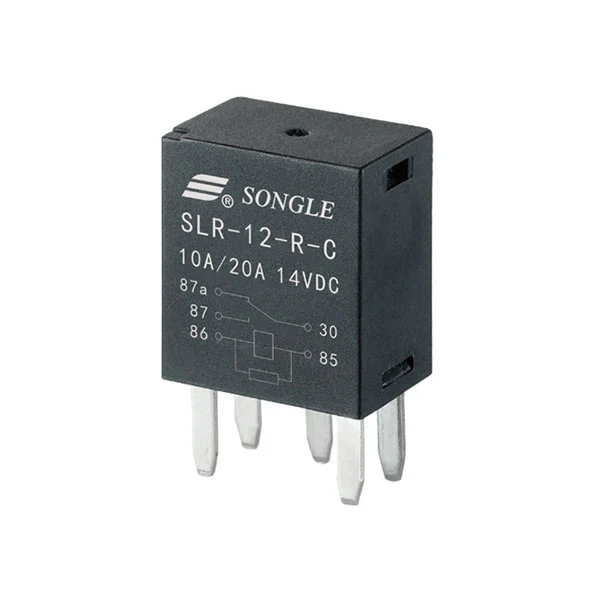

Application scenarios: Rear window defroster, battery disconnect device, automotive air conditioning, fuel pump control, fog light cooling fan control, headlight control, heater (seat, front/rear window heating control), wiper control, seat adjustment control, etc.
The product features standard QC quick-connect terminals for easy replacement and maintenance.
20A switching capability
Extended temp. range upto 125℃
1 Form A & 1 Form C contact arrangement
2.8mm QC terminals
| Contact Parameters | Value |
| Contact arrangement | A/C |
| Contact rating | 10A/20A 14VDC |
| Voltage drop | ≤200mV |
| Electrical endurance | 1×10⁵ ops |
| Mechanical endurance | 1×10⁷ ops |
| Coil Parameters | Value |
| Nominal voltage | 12VDC/24VDC |
| Power dissipation | 1.5W, 1.7W |
| Pick-up voltage (Max) | 65% of nominal voltage |
| Drop-out voltage (Min) | 10% of nominal voltage |
| Other Parameters | Value |
| Ambient temperature (°C) | −40°C~+125°C |
| Dielectric strength (Coil & contacts, 1min) | 500VAC |
| Dielectric strength (Open contacts, 1min) | 500VAC |
| Insulation resistance (500VDC) | 100MΩ |

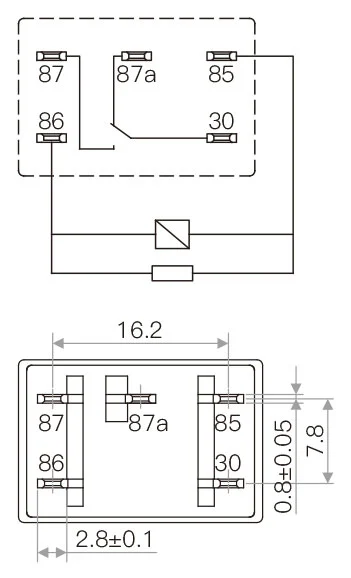

| Wiring diagram (Bottom view) |
|
| Installation hole drawing (Bottom view) | |
| Termination | QC (Quick Connect) |
| Weight | 22g |
