Summary: Small Medium Power Relays play a crucial role in controlling electrical circuits safely and efficiently. This article explores their working principle, applications, benefits, and how to choose the right relay for industrial and commercial projects. Ningbo Songle Relays Co., Ltd. provides high-quality solutions for diverse electrical requirements.

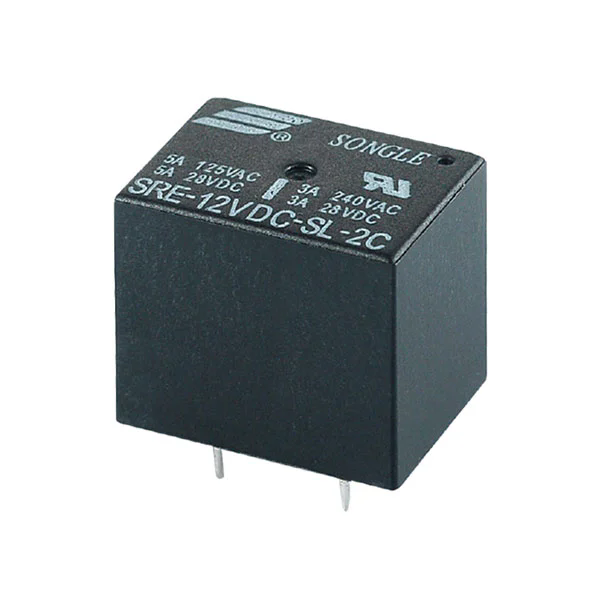

A Small Medium Power Relay is an electromechanical switch designed to handle moderate electrical loads in industrial, commercial, and residential applications. It allows one circuit to control another safely, often isolating low-voltage control signals from high-power devices.
Ningbo Songle Relays Co., Ltd. manufactures relays that meet global quality standards, ensuring safety, durability, and efficiency.
The relay operates using an electromagnetic coil that creates a magnetic field when current passes through it. This field moves an armature, which opens or closes electrical contacts to switch circuits on or off.
| Component | Description |
|---|---|
| Coil | Electromagnetic element responsible for switching |
| Contacts | Conductive elements that open or close the load circuit |
| Armature | Movable part activated by the coil's magnetic field |
| Casing | Protective shell preventing dust, moisture, and damage |
Using a small medium power relay offers several advantages:
Ningbo Songle Relays Co., Ltd. ensures each relay undergoes rigorous testing for performance and durability.
These relays are widely used across various industries:
When selecting a relay, consider the following factors:
| Factor | Recommendation |
|---|---|
| Voltage & Current Rating | Choose a relay that exceeds your circuit’s maximum requirements by 20–30% |
| Coil Voltage | Ensure compatibility with your control signal voltage |
| Contact Type | Normally Open (NO), Normally Closed (NC), or changeover based on your application |
| Mounting Style | PCB mount, DIN rail, or socket mount depending on installation environment |
| Environmental Protection | Check for dust, moisture, and temperature ratings |
Yes, high-quality relays from Ningbo Songle Relays Co., Ltd. are designed to handle inductive loads like motors and transformers efficiently.
With proper usage, relays can last millions of switching cycles. Ningbo Songle relays undergo strict durability testing to ensure long life.
Relays are usually rated separately for AC and DC. Always check the specifications before use to ensure compatibility.
NO (Normally Open) contacts remain open when de-energized and close when activated. NC (Normally Closed) contacts remain closed when de-energized and open when activated.
For reliable and efficient electrical switching solutions, Ningbo Songle Relays Co., Ltd. provides a wide range of high-quality small medium power relays designed to meet all industrial and commercial needs. Contact us today to explore the best relay solutions for your projects.
-
