From home devices to industrial applications, from communication equipment to automotive electronics, the SRF (T76) Relay achieves its core advantages of "lightweight design without sacrificing power and high sensitivity without reducing stability" through its all-scenario adaptability, robust performance, and brand endorsement. Coupled with Songle's annual production capacity of 200 million units and global after-sales support, buyers no longer need to worry about scenario compatibility, quality assurance, or stable supply; they can immediately place an order to secure a high-performance, cost-effective solution!
Super light in weight·
High sensitivity
Switching capacity upto 16A
PC board mounting
| Contact Parameters | Value |
| Contact arrangement | A/C |
| Contact rating | 16A 250VAC/30VDC |
| Contact resistance | ≤50mΩ |
| Electrical endurance | 10⁵ / 10⁴ |
| Mechanical endurance | 10⁷ |
| Coil Parameters | Value 1 | Value 2 |
| Nominal voltage | 5–48VDC | - |
| Power dissipation | 0.45W | 0.2W |
| Pick-up voltage(Max) | 80% of nominal voltage | 75% of nominal voltage |
| Drop-out voltage(Min) | 10% of nominal voltage | 5% of nominal voltage |
| Other Parameters | Value |
| Ambient temperature (°C) | −40°C~+85°C |
| Dielectric strength (Between coil and contacts, 1min) | 2500VAC |
| Dielectric strength (Between open contacts, 1min) | 1000VAC |
| Insulation resistance (500VDC) | 100MΩ |

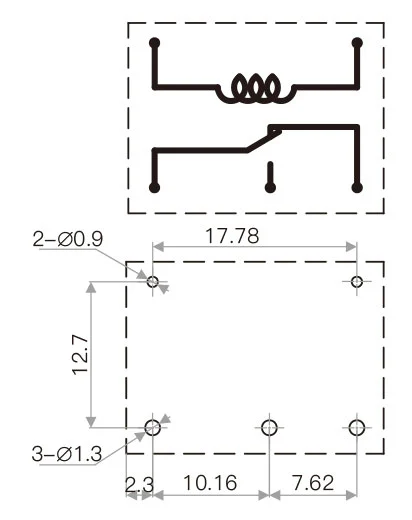

| Wiring diagram (Bottom view) |
|
| Installation hole drawing (Bottom view) | |
| Termination | P.C.B. |
| Weight | 10g |
| Safety approval | - |
