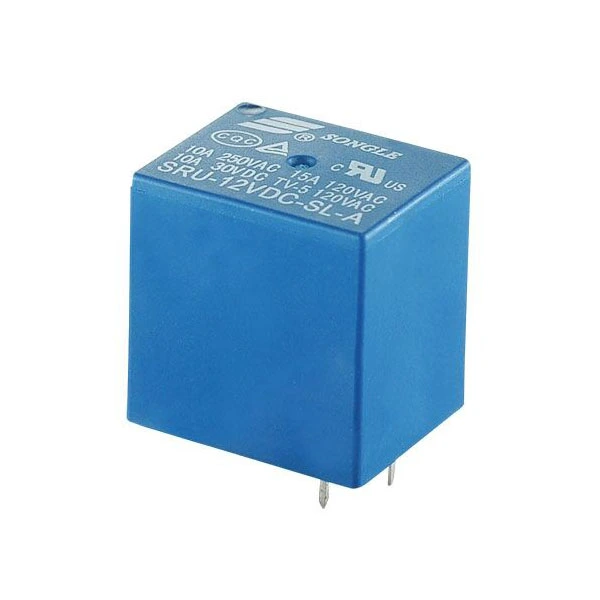

The SRU(22F) Relay ensures long-term, high-frequency, trouble-free operation under high load conditions, significantly reducing equipment downtime maintenance costs and replacement frequency. Its ultra-wide nominal voltage range of 5-48VDC and low-power coil configuration of 0.36W/0.45W not only adapt to diverse high-power circuit designs but also help end products optimize energy consumption, enhancing market competitiveness. From a procurement perspective, the product can match different power requirements without customization. The PCB terminal design simplifies the assembly process. Combined with the stable supply and high cost-effectiveness advantages brought by Songle's large-scale production capacity of 200 million units, it allows buyers to achieve a win-win situation in the three core dimensions of "quality assurance, delivery efficiency, and cost control." Whether it's high-power home appliance integration, industrial control equipment upgrades, or high-load conduction requirements in special environments, the SRU(22F) Relay, with its "tailor-made" solutions and verifiable quality capabilities, is the trusted choice for buyers without hesitation. Order now to lock in full-cycle value advantages!
15A switching capability
UL insulation system: Class F, Class B
Sealed and flux proofed types available
Standard PCB layout
| Parameter | Specification |
| Contact arrangement | A/B/C |
| Contact rating | 10A/15A 250VAC, 12A/15A 120VAC; TV-5 120VAC |
| Contact resistance | ≤100mΩ |
| Electrical endurance | 10⁵ / 10⁴ |
| Mechanical endurance | 10⁷ |
| Parameter | Specification |
| Nominal voltage | 5–48VDC |
| Power dissipation | 0.36W, 0.45W |
| Pick-up voltage(Max) | 75% of nominal voltage |
| Drop-out voltage(Min) | 10% of nominal voltage |
| Parameter | Specification |
| Ambient temperature | –40°C~+85°C/+105°C |
| Dielectric strength (Between coil and contacts) | 1500VAC (1min) |
| Dielectric strength (Between open contacts) | 1000VAC (1min) |
| Insulation resistance (500VDC) | 100MΩ |

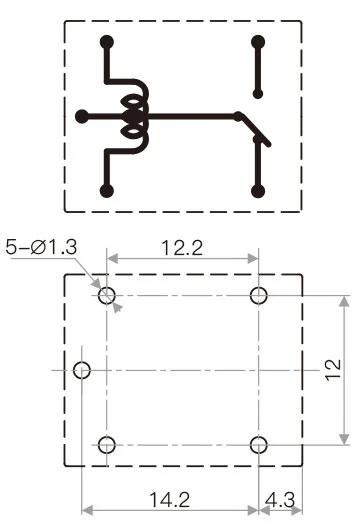

| Wiring diagram (Bottom view) |
|
| Installation hole drawing (Bottom view) | |
| Termination | P.C.B. |
| Weight | 12g |
| Safety approval |
|
